Moto Master brake disc Flame 230 mm 6-hole 110609

Reference 17102341

Read reviews (0)

Brake disc Moto Master Flame 230 mm 6 holes 110609: made from stainless steel, thickness 4.0 mm. Model suitable for the vehicles listed in the compatibility list.

TÜV approved.

114,44 € incl. VAT

Quantity

Available [6 in stock] Shipped on 1/30/26. , expected delivery date 2/3/26

Wishlist

Description

Compatible with

The Moto Master Flame brake disc 230 mm 6-hole 110609 offers you powerful and consistent braking, with excellent heat dissipation.

Technical specifications of the brake disc Moto-Master 110609

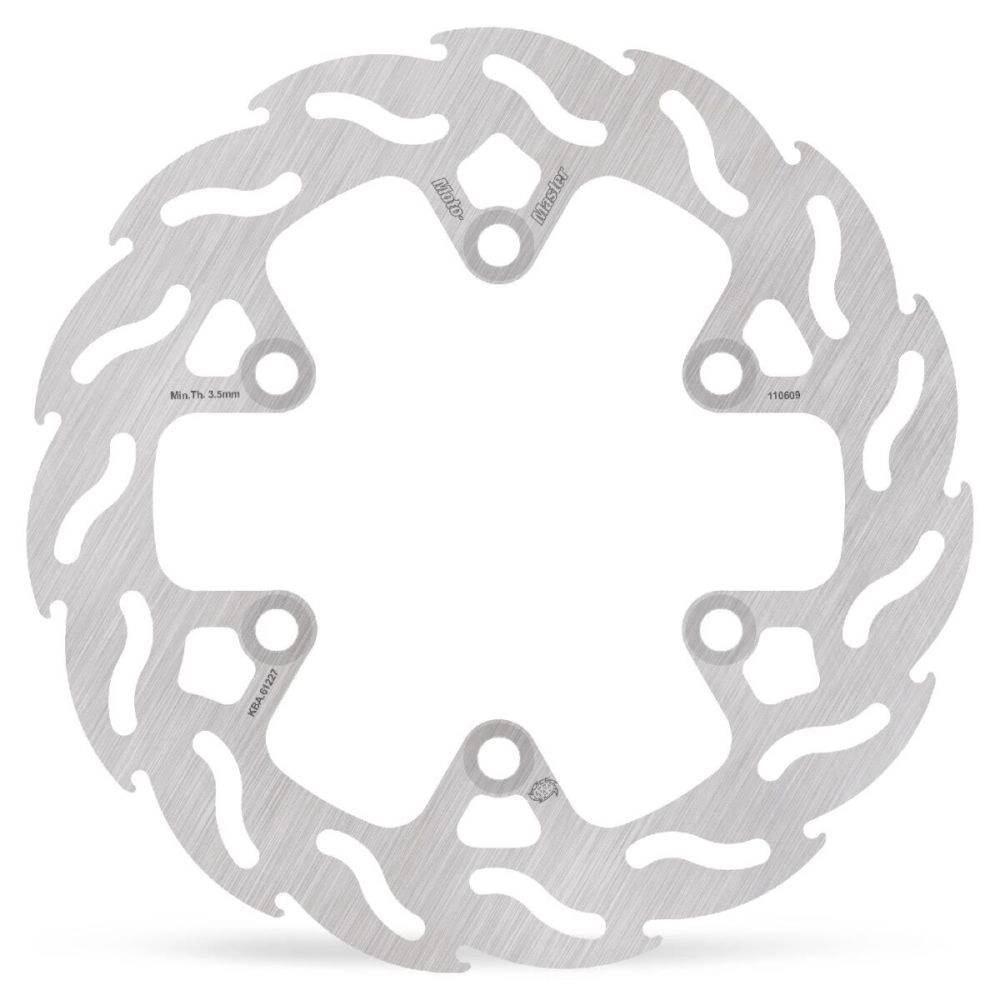

The brake disc is designed with an inner diameter of 104,5 mm, an outer diameter of 230 mm, mounting (drilling) with 6 holes, thickness 4.0 mm, material: stainless steel.

Features of the brake disc rear series Flame

Improved performance et easy to fit on your motorcycle.
The unique Flame design provides optimal cooling and smooth, predictable braking, allowing you to brake harder.
FLAME Fixed discs are laser-cut, CNC-drilled and double-side ground for perfect fit and flatness

When to change a motorcycle brake disc

What is the average service life of a motorcycle brake disc?

The average service life of a motorcycle brake disc is around 40,000 km. This figure varies depending on the type of disc, the quality of the materials, riding style, the bike’s weight and the thermal stresses generated by repeated braking.

How can you tell if a brake disc is damaged?

Motorcycle brake discs should be checked every 20,000 to 30,000 km or whenever you replace the brake pads.

A motorcycle brake disc must be replaced as soon as cracks appear, the disc becomes warped or deformed, runout is excessive, or when the minimum thickness specified by the manufacturer is reached. A disc that is out of tolerance leads to reduced braking efficiency and accelerated pad wear.

A warped brake disc can be identified by vibrations at the lever or pedal during braking, irregular pulsing, or a loss of progressive feel. Disc runout causes uneven contact with the pads and requires immediate replacement of the affected disc.

Can a rusted brake disc be recovered?

A brake disc showing advanced corrosion or rust is considered unserviceable. Corrosion damages the friction surface and heat dissipation, making any cleaning operation ineffective and incompatible with safe braking.

This product is comptable with:

HUSQVARNA	Svartpilen 125	2021 => 2023
HUSQVARNA	Vitpilen	2017 => 2024
KTM	125 DUKE	2011 => 2016
KTM	125 DUKE	2017 => 2023
KTM	200 DUKE	2012 => 2014
KTM	390 Adventure	2020 => 2024
KTM	390 DUKE	2013 => 2016
KTM	390 DUKE	2017 => 2023
KTM	RC 125	2014 => 2020
KTM	RC 125	2022 => 2023
KTM	RC 200	2014 => 2014
KTM	RC 390	2014 => 2020
KTM	RC 390	2022 => 2024
