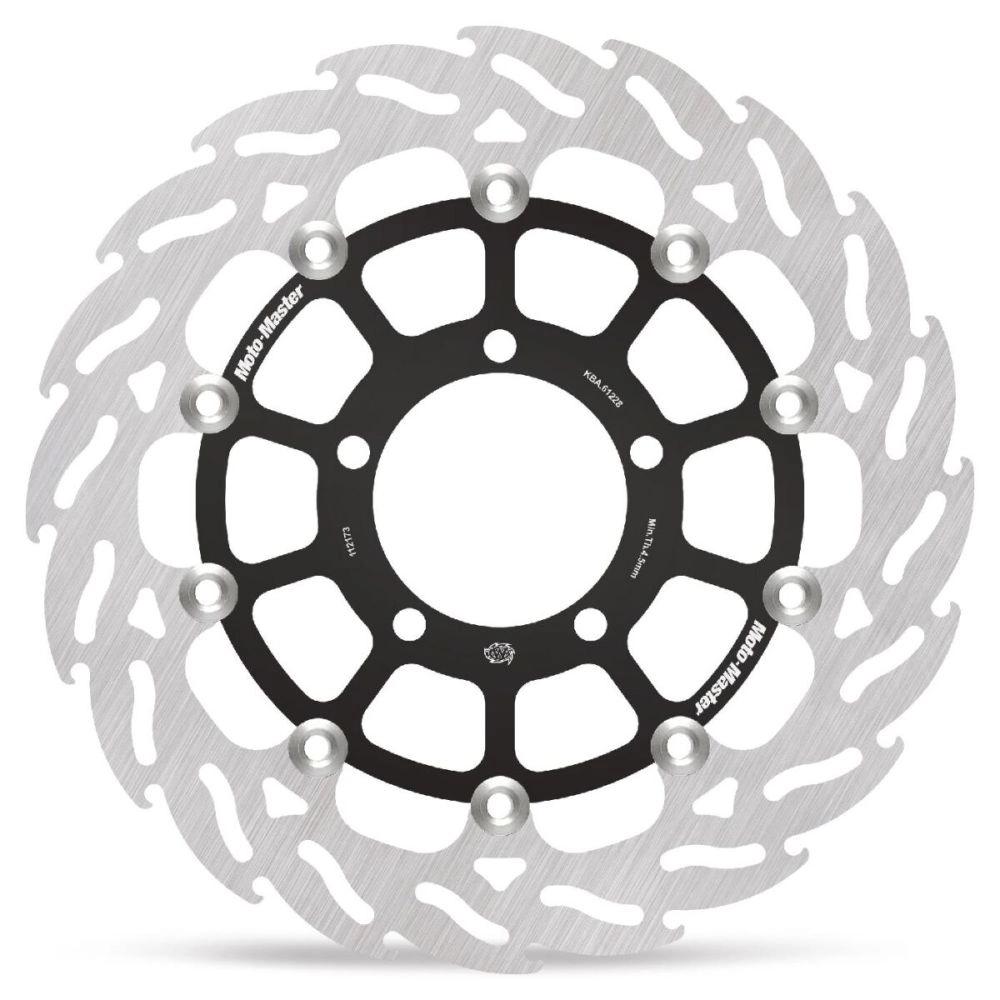

Moto Master brake disc Flame 310 mm full-floating drilled 5-hole 112173

Reference 17102359

Read reviews (0)

Brake disc Moto Master Flame 310 mm floating drilled 5 holes 112173: made from aluminium / acier, thickness 5.0 mm. Model suitable for the vehicles listed in the compatibility list.

TÜV approved.

228,82 € incl. VAT

Quantity

Available [6 in stock] Shipped on 2/3/26. , expected delivery date 2/5/26

Wishlist

Payment 3x available from 150€ of purchase

Description

Compatible with

The Moto Master Flame brake disc 310 mm floating drilled 5-hole 112173 offers you powerful and consistent braking, with excellent heat dissipation.

Technical specifications of the brake disc Moto-Master 112173

The brake disc is designed with an inner diameter of 82,5 mm (3-1/4"), an outer diameter of 310 mm, a style of type floating, surface drilled, mounting (drilling) with 5 holes, thickness 5.0 mm, material: aluminum / Steel.

When to change a motorcycle brake disc

What is the average service life of a motorcycle brake disc?

The average service life of a motorcycle brake disc is around 40,000 km. This figure varies depending on the type of disc, the quality of the materials, riding style, the bike’s weight and the thermal stresses generated by repeated braking.

How can you tell if a brake disc is damaged?

Motorcycle brake discs should be checked every 20,000 to 30,000 km or whenever you replace the brake pads.

A motorcycle brake disc must be replaced as soon as cracks appear, the disc becomes warped or deformed, runout is excessive, or when the minimum thickness specified by the manufacturer is reached. A disc that is out of tolerance leads to reduced braking efficiency and accelerated pad wear.

A warped brake disc can be identified by vibrations at the lever or pedal during braking, irregular pulsing, or a loss of progressive feel. Disc runout causes uneven contact with the pads and requires immediate replacement of the affected disc.

Can a rusted brake disc be recovered?

A brake disc showing advanced corrosion or rust is considered unserviceable. Corrosion damages the friction surface and heat dissipation, making any cleaning operation ineffective and incompatible with safe braking.

This product is comptable with:

TRIUMPH	BONNEVILLE 1200 T120	2016 => 2025
TRIUMPH	DAYTONA 675	2013 => 2017
TRIUMPH	DAYTONA 675 R	2013 => 2018
TRIUMPH	SPEEDMASTER	2018 => 2025
TRIUMPH	STREET TRIPLE	2013 => 2016
TRIUMPH	STREET TRIPLE 660	2020 => 2022
TRIUMPH	STREET TRIPLE 765 R	2020 => 2022
TRIUMPH	STREET TRIPLE 765 RS	2020 => 2022
TRIUMPH	STREET TRIPLE 765 RS	2023 => 2026+
TRIUMPH	THRUXTON 1200	2016 => 2019
TRIUMPH	THRUXTON 1200 R	2016 => 2019
TRIUMPH	THRUXTON RS	2020 => 2024
