Disc Brake Rotor Brembo PRIME Serie Oro Floating 78B40866

Reference 17105099

Read reviews (0)

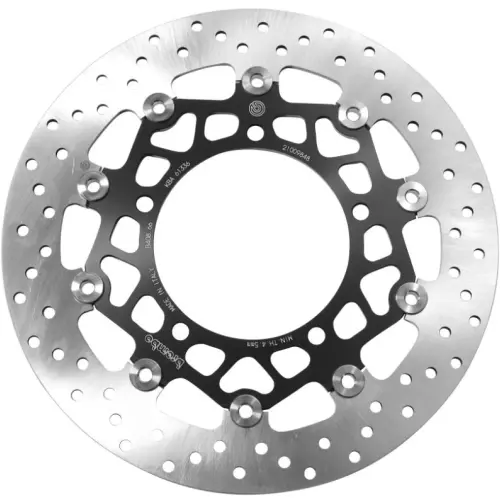

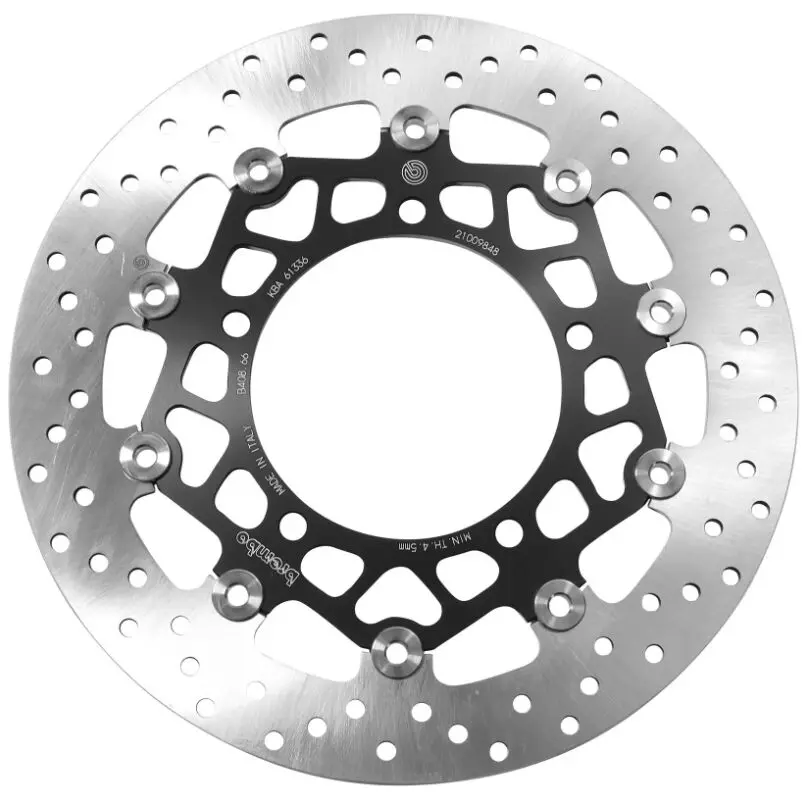

Brembo floating brake disc PRIME Serie Oro 78B40866. Made of a stainless steel braking band with a CNC-machined anodized aluminium hub.

Interchangeable with the original disc to meet or exceed OE quality.

326,12 € incl. VAT

Quantity

Available [4 in stock] Shipped on 4/4/26. , expected delivery date 4/7/26

Wishlist

Payment 3x available from 150€ of purchase

Description

Compatible with

Brembo floating brake disc PRIME Serie Oro 78B40866 that meets or exceeds OE fit, form and function specifications. With Brembo, your braking is reliable in all conditions!

Sold individually.

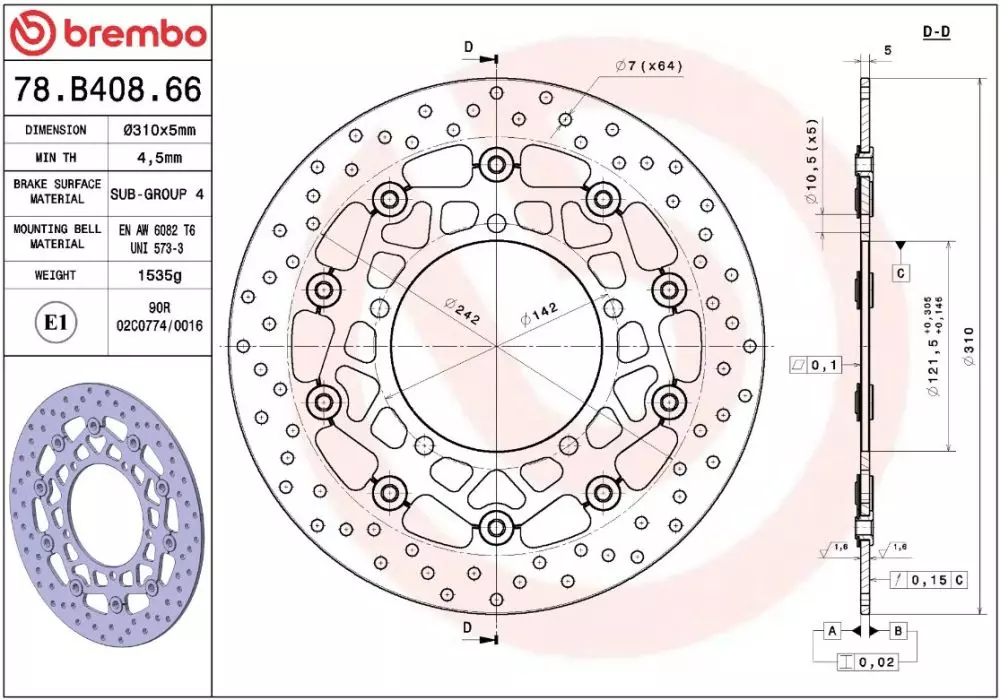

Technical specifications of the Brembo 78B40866

Bolt Hole Circle : 142,0 mm
Bolt Pattern : 5 Hole
Braking surface : Drilled
Color/Finish : Black, Silver, Stainless Steel
Inside Diameter : 121,5 mm (4-25/32")
Material : Aluminum Alloy, Stainless Steel
Outside Diameter : 310 mm (12-13/64")
Shape : Round
Style : Full-Floating
Thickness : 5 mm (3/16")

Features of Brembo Serie Oro brake discs

The Serie Oro is the braking product with which Brembo entered the racing world in the mid-seventies, quickly becoming the benchmark in the brake disc sector. Oro discs are perfectly interchangeable with original equipment discs to achieve superior quality!

The Brembo Serie Oro motorcycle brake discs are manufactured with a specific drilling pattern for better heat dissipation. Brembo's extensive experience has made it possible to define the most suitable geometries, tolerances and dimensions for each type of motorcycle and usage.

They are available in both « fixed » and « floating » versions.

Brembo Oro brake disc - Fixed version

The Oro fixed-type brake disc is designed from a single piece of stainless steel. The structural spokes allow more efficient transmission of braking torque, while also offering better resistance to thermal and mechanical stress.

Brembo Oro brake disc - Floating version

The Oro floating-type brake disc consists of two separate parts : a stainless steel braking track connected by pins to an anodized aluminium carrier. They ensure controlled movement and precise tolerances.

A floating brake disc guarantees better handling and consistent braking performance, even under extreme thermal stress or aggressive riding.

This product is comptable with:

SUZUKI	B KING	2007 => 2011
SUZUKI	GSF 650 BANDIT	2007 => 2008
SUZUKI	GSF 650 BANDIT	2009 => 2015
SUZUKI	GSF 1200 BANDIT	2006 => 2006
SUZUKI	GSF 1250 BANDIT S	2007 => 2014
SUZUKI	GSF 1250 BANDIT S	2015 => 2017
SUZUKI	GSR 600	2006 => 2011
SUZUKI	GSR 750	2011 => 2017
SUZUKI	GSX-F 650	2008 => 2016
SUZUKI	GSX-S 750	2017 => 2021
SUZUKI	GSX 1250 FA	2010 => 2017
SUZUKI	GSX 1300 R HAYABUSA	2008 => 2018
SUZUKI	V-STROM 650	2012 => 2016
SUZUKI	V-STROM 1000	2014 => 2016
SUZUKI	V-STROM 1000	2017 => 2019
