Handlebars abm superbike 28,6mm

Guidon moto abm superbike booster 28,6mm


Handlebars ABM Superbike 28,6mm

Reference 100773

Read reviews (0)

view items in the category Handlebar for motorbike APRILIA TUONO.

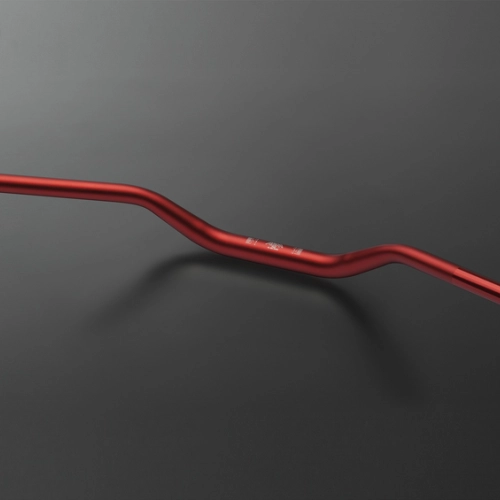

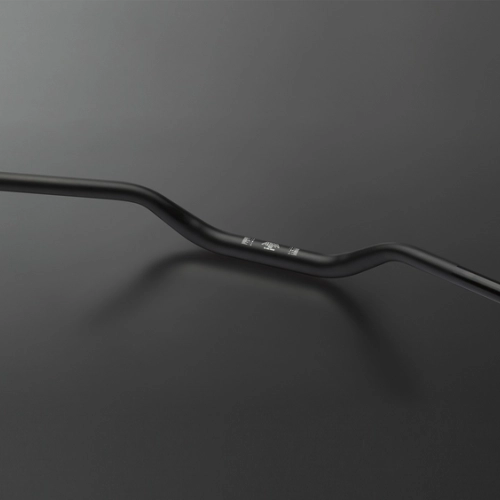

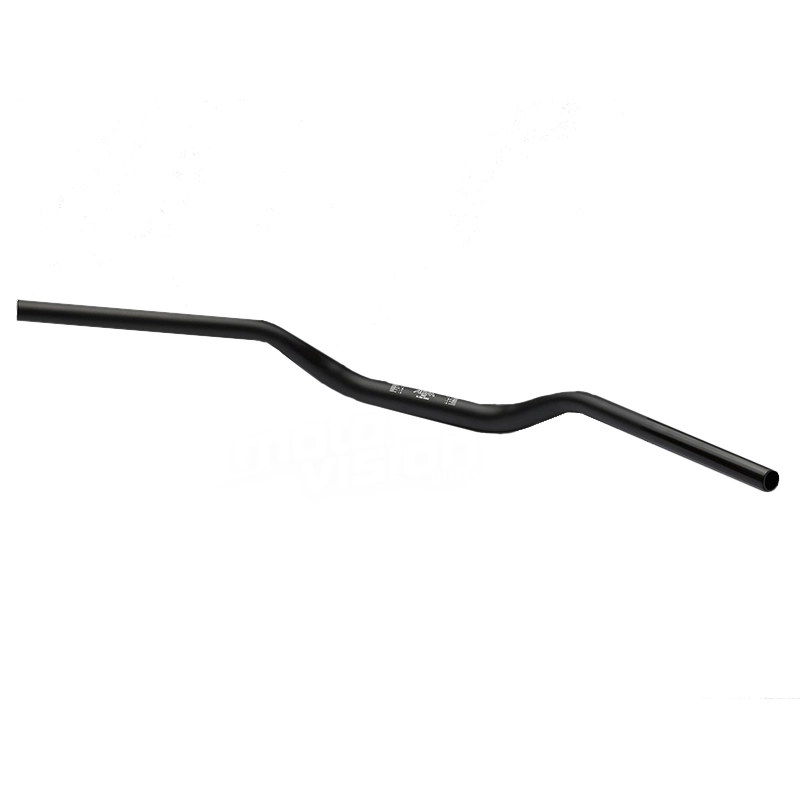

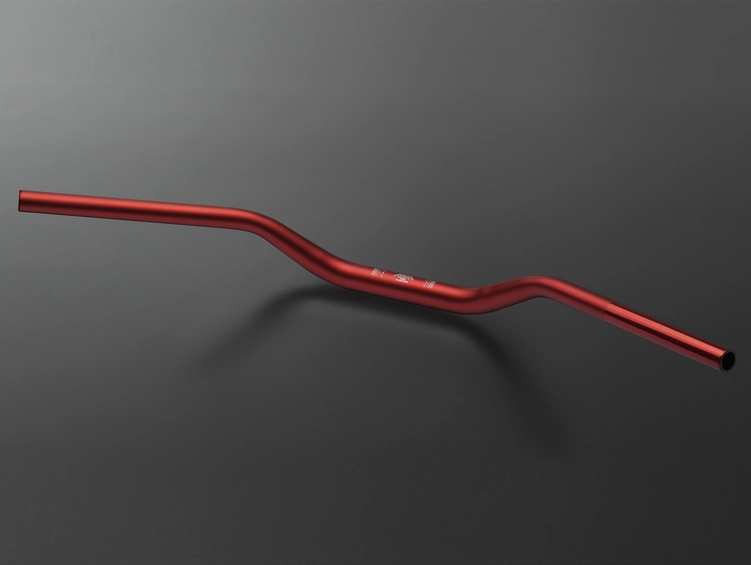

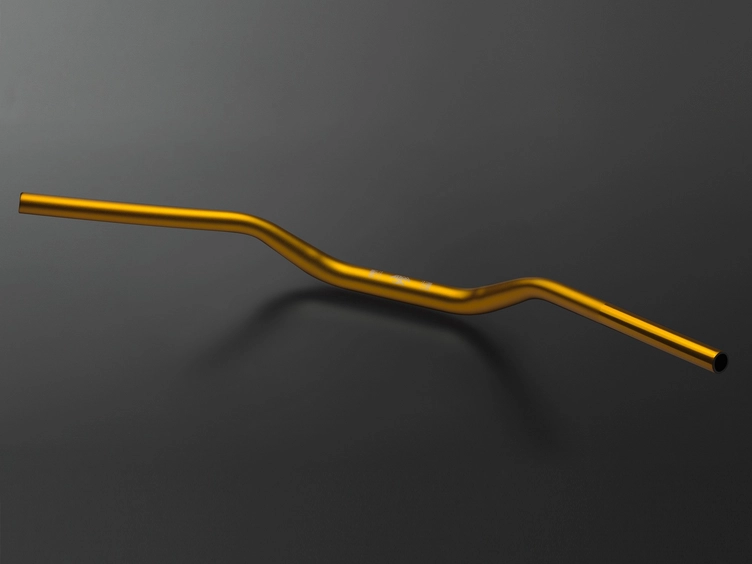

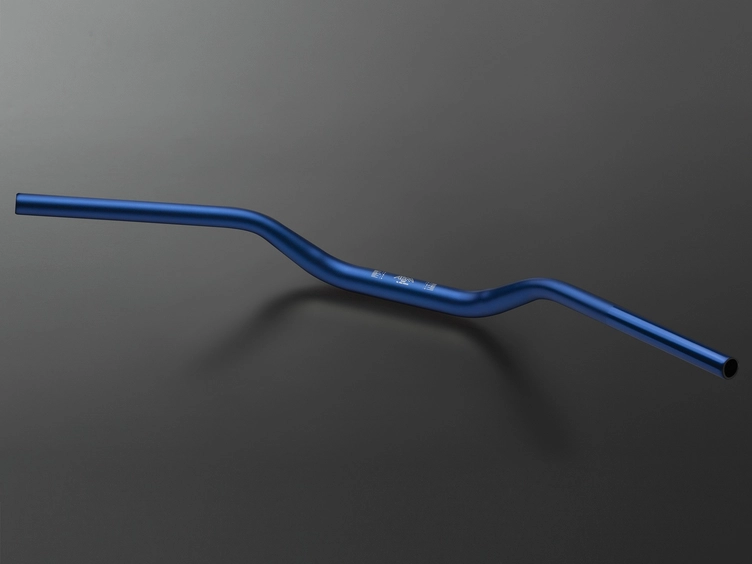

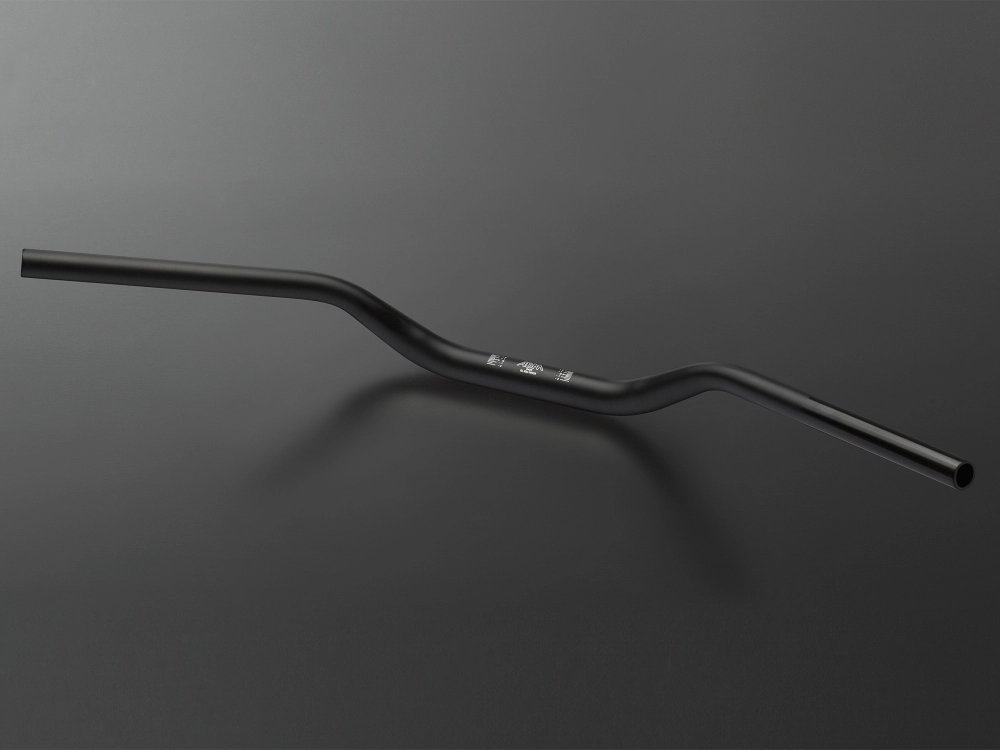

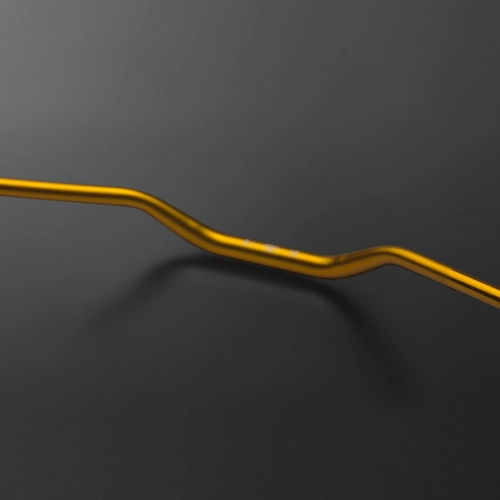

ABM offers you this classic diameter superbike handlebar, which will make you gain in handling as well as comfort. Ideal for replacing the original handlebar, made of high strength aluminium with glass bead blasting on the surface and laser engraving "ABM".

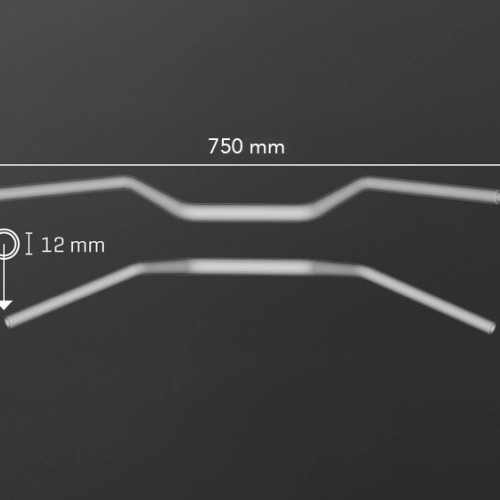

Handlebar suitable for a Ø28.6 mm clamping area with a length of 750 mm.

It meets the latest standards (German TÜV and ABE).

Description

Compatible with

Technical sheet

Reviews 0

ABM offers you this classic diameter superbike handlebar, which will make you gain in handling as well as in comfort. The handlebars are made entirely of reinforced aluminium and meet the latest standards (German TÜV and ABE).

The handlebars can only be mounted on motorbikes with a diameter of Ø28.6 mm. It has a length of 750 mm.

All hoses and Bowden cables must be laid in such a way that they are not kinked or under tension when the handlebars are moved. In addition, it is important that there is sufficient distance to the friction marks. The brake hoses must not go below a bending radius of 40 mm. When the steering is completely blocked and the engine is running, the engine speed does not change on either side.

It must be ensured that all parts and control units of the handlebar are in a functional position, even when the steering is fully locked. The brake cylinder and reservoirs must be in the operating position. You must ensure that the handlebars, their additional components and the steering lock angle are free to move on both sides.

After installation, a functional check of the brake, clutch, throttle, lighting and horn is of great importance.
