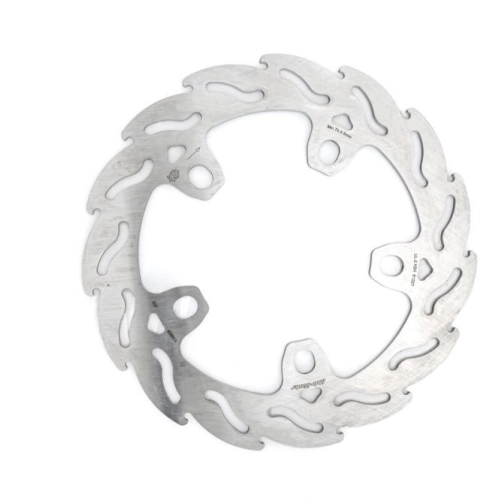

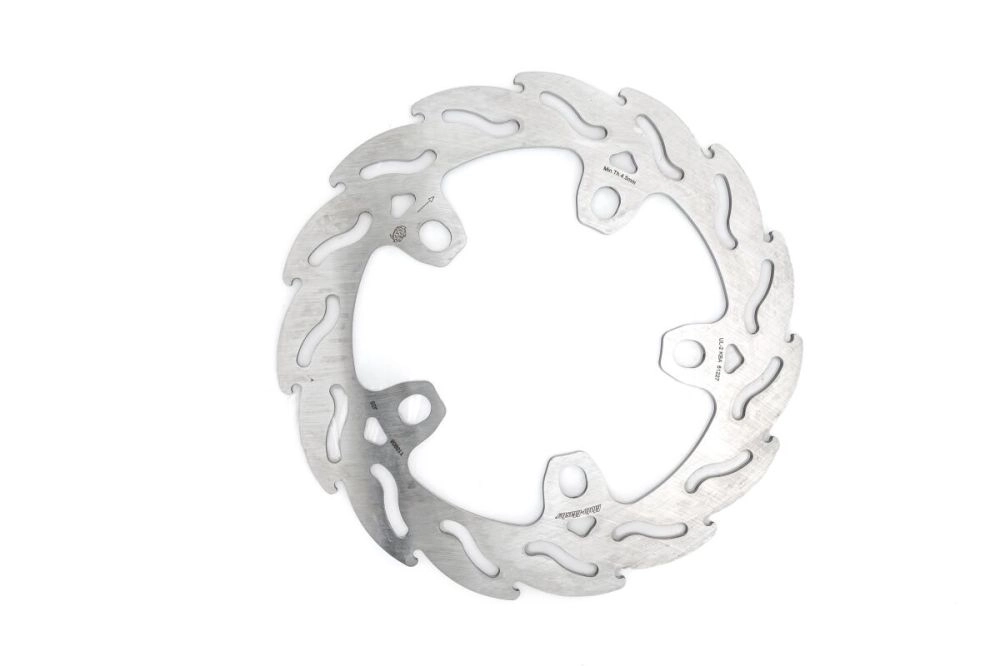

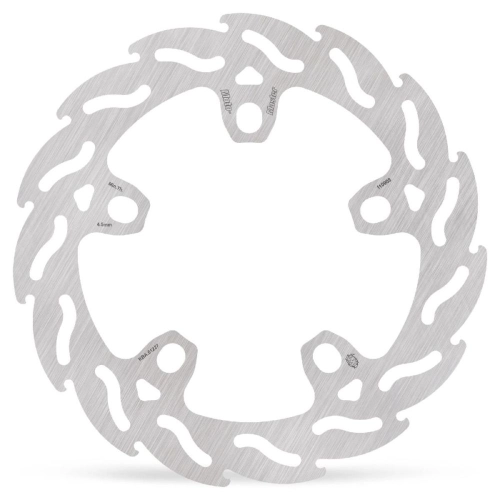

Moto Master brake disc Flame 260 mm Solid-Mount drilled 5-hole 110908

The Moto Master Flame brake disc 260 mm solid-mount drilled 5-hole 110908 offers you powerful and consistent braking, with excellent heat dissipation.

Technical specifications of the brake disc Moto-Master 110908

The brake disc is designed with an inner diameter of 118 mm (4-41/64"), an outer diameter of 260 mm, a style of type Solid-Mount, surface drilled, mounting (drilling) with 5 holes, thickness 5.0 mm, material: stainless steel.

Flame Series Fixed Brake Disc Features

• The flame-shaped ventilation holes and outer perimeter ensure uniform contact between the brake disc and the rotor during disc rotation.
• It offers unpredictable and unparalleled smooth braking action, allowing you to brake harder.
• FLAME Fixed discs are laser-cut, CNC-drilled, and double-ground for a perfect fit and flatness.
• For optimal performance, we recommend using Moto-Master brake pads with the appropriate compound.

When to change a motorcycle brake disc

• What is the average service life of a motorcycle brake disc?

The average service life of a motorcycle brake disc is around 40,000 km. This figure varies depending on the type of disc, the quality of the materials, riding style, the bike’s weight and the thermal stresses generated by repeated braking.

• How can you tell if a brake disc is damaged?

Motorcycle brake discs should be checked every 20,000 to 30,000 km or whenever you replace the brake pads.

A motorcycle brake disc must be replaced as soon as cracks appear, the disc becomes warped or deformed, runout is excessive, or when the minimum thickness specified by the manufacturer is reached. A disc that is out of tolerance leads to reduced braking efficiency and accelerated pad wear.

A warped brake disc can be identified by vibrations at the lever or pedal during braking, irregular pulsing, or a loss of progressive feel. Disc runout causes uneven contact with the pads and requires immediate replacement of the affected disc.

• Can a rusted brake disc be recovered?

A brake disc showing advanced corrosion or rust is considered unserviceable. Corrosion damages the friction surface and heat dissipation, making any cleaning operation ineffective and incompatible with safe braking.
