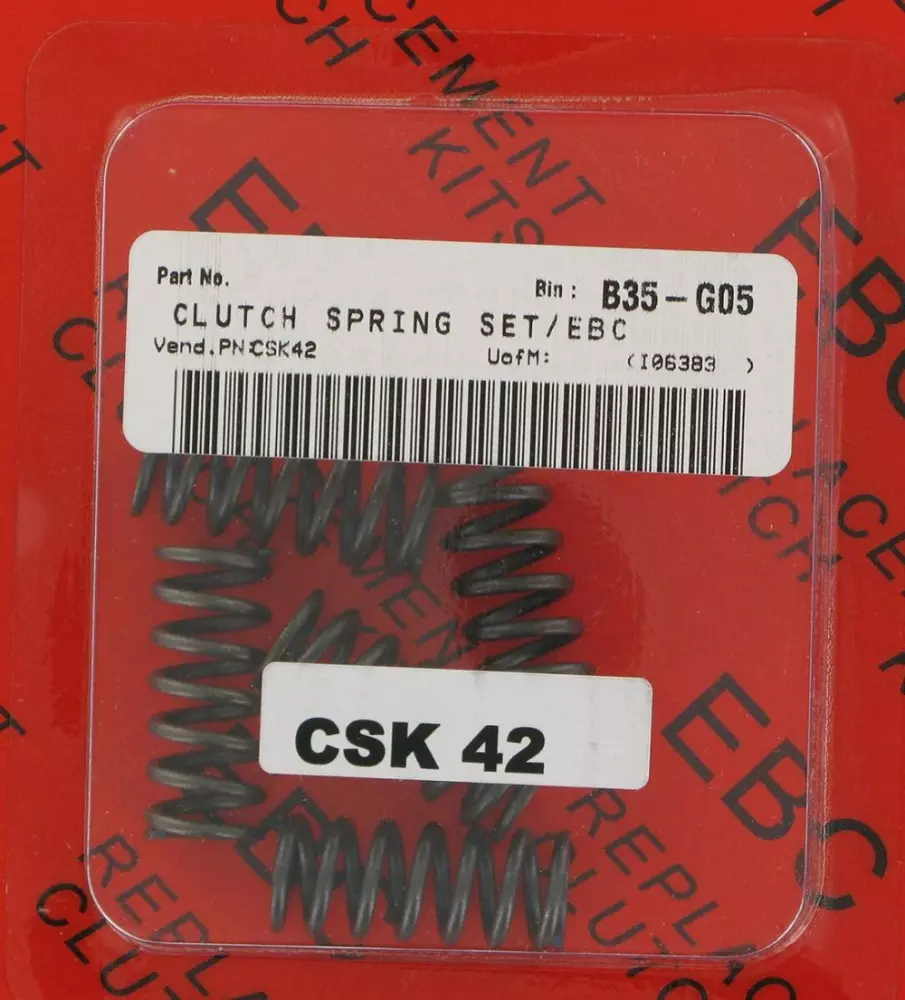

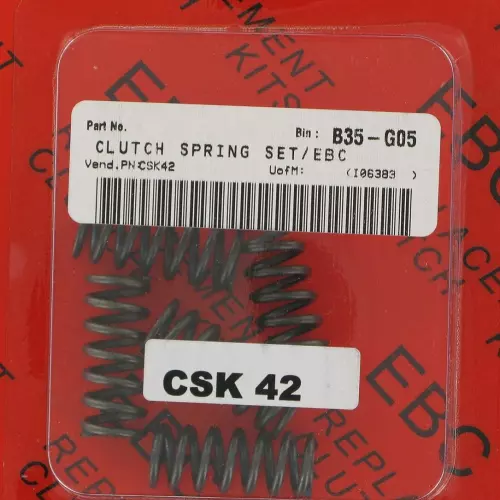

EBC CSK042 uprated motorcycle clutch spring kit

Choose your clutch parts according to the wear found during inspection. EBC CSK042 belongs to the CSK Series. Check the set contents, the condition of components you plan to reuse and the listed motorcycle applications before preparing the repair.

Contents and technical features

• Spring style: coil
• Heat-treated and tempered steel
• Uprated clamping pressure depending on the application
• Friction and separator plates not included

Why choose this EBC motorcycle clutch kit?

The CSK Series acts directly on the pressure applied to the clutch stack. Its heat-treated steel springs replace compatible original parts and provide uprated clamping force depending on the application. It is suited to a repair where the plates remain serviceable but the springs have lost effectiveness. The exact spring style is identified in the technical characteristics.

Compatible motorcycles

Check the exact model, version and model year before ordering.

HUSQVARNA

• TC 85 17/14 / TC 85 19/16 : 2014–2018 — 85 cm³

KTM

• SX 85 17/14 / SX 85 19/16 : 2003–2017 — 85 cm³

YAMAHA

• RS 100 : 1975–1979, 1981 — 100 cm³
• RS 100 S : 1978 — 100 cm³
• RS 100 DX : 1979–1981 — 100 cm³
• RXS 100 : 1983–1990 — 100 cm³
• DT 125 LC : 1982–1983, 1985–1987 — 122 cm³
• RD 125 LC : 1982–1984 — 122 cm³
• RD 125 : 1973–1974 — 124 cm³
• RD 125 DX : 1975–1976, 1978–1981 — 124 cm³
• DT 125 R / TDR 125 : 1997–2002 — 124 cm³
• DT 125 RE : 2004–2006 — 124 cm³
• DT 125 X : 2005–2006 — 124 cm³
• YBR 125 : 2005–2008 — 124 cm³
• XT 125 R / XT 125 X : 2005–2011 — 124 cm³
• YBR 125 (Diversion) : 2007 — 124 cm³
• YBR 125 (Custom) : 2008 — 124 cm³
• DT 125 E / DT 125 F : 1974 — 125 cm³
• DT 125 : 1974, 1981–1983, 1985 — 125 cm³
• YZ 125 : 1979 — 125 cm³
• TY 125 : 1980 — 125 cm³
• IT 125 : 1980–1982 — 125 cm³
• DT 125 MX : 1980–1987 — 125 cm³
• RD 125 LC : 1985–1986 — 125 cm³
• RD 125 LC (YPVS) : 1985–1987 — 125 cm³
• TZR 125 : 1987–1995 — 125 cm³
• DT 125 R : 1988–1996 — 125 cm³
• TDR 125 : 1989–1996 — 125 cm³
• TZR 125 R : 1991–1995 — 125 cm³
• TZR 125 RR : 1994–1995 — 125 cm³
• TT-R 125 LWE : 2011–2017 — 125 cm³
• TT-R 125 LE : 2023–2026 — 125 cm³
• DT 175 MX : 1978–1981 — 169 cm³
• DT 175 : 1974–1975, 1996 — 175 cm³
• TY 175 : 1977–1979 — 175 cm³
• RD 200 DX : 1976–1978 — 194 cm³
• WR 200 R : 1992–1993 — 200 cm³
• FZR 400 (Genesis) : 1986 — 400 cm³
• FZR 400 R SP (Exup) : 1987 — 400 cm³
• FZR 400 RR SP (Exup) : 1990, 1992, 1994 — 400 cm³
• FZR 400 RR : 1992 — 400 cm³
• TY 50 M : 1977 — 48 cm³
• FS1 50 DX (W/Footrest) : 1974–1981 — 49 cm³
• FS1 50 DX : 1976–1984 — 49 cm³
• RD 50 DX : 1978 — 49 cm³
• RD 50 : 1978, 1981–1983, 1986 — 49 cm³
• RD 50 M : 1978–1983 — 49 cm³
• DT 50 M : 1978–1984 — 49 cm³
• DT 50 MX : 1981–1995 — 49 cm³
• RD 50 MX : 1982–1983 — 49 cm³
• DT 50 R : 1998 — 49 cm³
• FS1-E 50 (W/Pedal) : 1974–1980 — 50 cm³
• FS1 50 E (W/Pedal) : 1974–1981 — 50 cm³
• FS1 50 (W/Footrest) : 1974–1989 — 50 cm³
• FS1 50 : 1976–1989 — 50 cm³
• TY 50 : 1977–1978 — 50 cm³
• TY 50 M : 1978, 1980 — 50 cm³
• YZ 50 G : 1980 — 50 cm³
• FS1 50 SE (Sheriff) / FS1 50 SE (Yankee) : 1981–1982 — 50 cm³
• DT 50 AUTO : 1982–1988 — 50 cm³
• YSR 50 : 1988–1989 — 50 cm³
• DT 50 R : 1989–1995 — 50 cm³
• DT 50 LC : 1993–1995, 1998 — 50 cm³
• FZR 600 (Genesis) : 1989–1993 — 599 cm³
• YZ 65 : 2018–2026 — 65 cm³
• RD 80 LC I : 1982 — 78 cm³
• DT 80 LC I : 1983–1984 — 78 cm³
• DT 80 MXS : 1984 — 78 cm³
• DT 80 LC II : 1985–1989 — 79 cm³
• TY 80 : 1977 — 80 cm³
• YZ 80 : 1977–1989, 1995–2001 — 80 cm³
• DT 80 MX : 1981–1983 — 80 cm³
• DT 80 LC II : 1990–1992 — 80 cm³
• YZ 80 LW : 1995–2001 — 80 cm³
• YZ 85 SW : 2002–2018, 2020 — 85 cm³
• YZ 85 LW : 2002–2021 — 85 cm³

Fitting and operating advice

Before fitting, always compare the EBC reference, model year, engine capacity and exact motorcycle version with the application list. The same commercial model name can use different assemblies between years. Inspect the clutch basket, hub, pressure plate, release mechanism and every component that will be reused. Deep notches, distortion or dimensions outside service limits must be addressed in accordance with the workshop manual.

Follow the manufacturer's sequence, component orientation and tightening torques. Use the recommended motorcycle oil at the correct level, and avoid additives that may interfere with a wet clutch. Where required, prepare the friction plates according to the manufacturer's procedure before assembly. After fitting, check free play, control operation and the absence of unusual noise or leaks before returning the motorcycle to normal use.

Progressive operation during the first journeys helps confirm clean engagement and release. If the lever becomes abnormally heavy, the motorcycle creeps with the lever pulled in, or the clutch continues to slip, stop the road check and repeat the diagnosis. Installation should be entrusted to a competent technician whenever the required tools, measurements or experience are not available.
