EBC CSK119 uprated motorcycle clutch spring kit

Choose your clutch parts according to the wear found during inspection. EBC CSK119 belongs to the CSK Series. Check the set contents, the condition of components you plan to reuse and the listed motorcycle applications before preparing the repair.

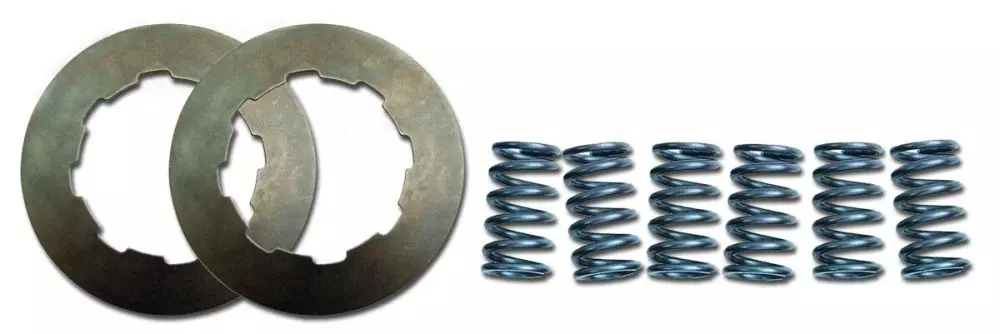

Contents and technical features

• Spring style: coil and diaphragm
• Heat-treated and tempered steel
• Uprated clamping pressure depending on the application
• Friction and separator plates not included
• Spring material : steel

Why choose this EBC motorcycle clutch kit?

The CSK Series acts directly on the pressure applied to the clutch stack. Its heat-treated steel springs replace compatible original parts and provide uprated clamping force depending on the application. It is suited to a repair where the plates remain serviceable but the springs have lost effectiveness. The exact spring style is identified in the technical characteristics.

Compatible motorcycles

Check the exact model, version and model year before ordering.

SUZUKI

• RM 250 : 2006–2012 — 250 cm³

YAMAHA

• FZ8 S (Fazer) / FZ8 S ABS (Fazer) : 2010–2011, 2013–2016 — 779 cm³
• FZ8 N / FZ8 N ABS : 2010–2016 — 779 cm³
• MT-09 / MT-09 ABS / MT-09 ABS (Sport Tracker) / MT-09 ABS (Street Rally) : 2014–2016 — 847 cm³
• MT-09 ABS (Tracer) : 2015–2020 — 847 cm³
• MT-09 ABS (Tracer 9) : 2021–2024 — 890 cm³
• MT-09 ATR S (Tracer 9 Y-AMT) : 2025 — 890 cm³
• MT-09 TR S (Tracer 9) : 2025–2026 — 890 cm³
• YZF-R1 1000 : 2004–2006 — 998 cm³
• YZF-R1 1000 SP : 2006 — 998 cm³
• FZ1 1000 N : 2006–2009, 2011–2014 — 998 cm³
• FZ1 1000 S (Fazer) : 2006–2009, 2012–2014 — 998 cm³
• FZ1 1000 S ABS (Fazer) : 2007–2014 — 998 cm³
• FZ1 1000 N ABS : 2008–2014 — 998 cm³

Fitting and operating advice

Before fitting, always compare the EBC reference, model year, engine capacity and exact motorcycle version with the application list. The same commercial model name can use different assemblies between years. Inspect the clutch basket, hub, pressure plate, release mechanism and every component that will be reused. Deep notches, distortion or dimensions outside service limits must be addressed in accordance with the workshop manual.

Follow the manufacturer's sequence, component orientation and tightening torques. Use the recommended motorcycle oil at the correct level, and avoid additives that may interfere with a wet clutch. Where required, prepare the friction plates according to the manufacturer's procedure before assembly. After fitting, check free play, control operation and the absence of unusual noise or leaks before returning the motorcycle to normal use.

Progressive operation during the first journeys helps confirm clean engagement and release. If the lever becomes abnormally heavy, the motorcycle creeps with the lever pulled in, or the clutch continues to slip, stop the road check and repeat the diagnosis. Installation should be entrusted to a competent technician whenever the required tools, measurements or experience are not available.

EBC friction technology for motorcycles

EBC is known for friction components developed for motorcycles. Its separate product series make it easier to select a solution that matches both the intended use and the required contents, from routine replacement to more demanding applications. Browse related products in our motorcycle clutch category.
