Mo.switch basic 2 button switch Motogadget

Reference 4004032-1

Read reviews (0)

Motogadget mo.switch basic LED switch assembly with 2 buttons, an ideal solution for anyone looking for a minimalist and practical handlebar design. Everything is ready for installation, with quick and easy connection and wiring.

Supplied as standard with 2 white LED push buttons and customisable with 5 different LED colours.

The housing is available in black or silver, for installation on the left or right side.

134,90 € incl. VAT

Description

Compatible with

The mo.switch basic LED is a high-quality universal 2-push-button control unit, compatible with handlebars featuring a tube diameter of 1 inch or 22.2 mm (7/8 inch).

When combined with a mo.relay+ electronic push-button control unit (not supplied), these CNC-machined push-button housings made from billet aluminium can control all electrical components, such as lights, indicators, the electric starter, horn and much more.

Detailed technical specifications of the Motogadget mo.switch basic 2-button switch assembly

Inner diameter: 7/8 and 1 inch
Housing outer diameter: approx. 45 mm
Width: 2 buttons 22 mm, 3 buttons 42.5 mm
Fully wired push buttons
High-quality 1.8 m connection cable
LED-illuminated push buttons, LED colour to be selected when ordering
High-quality CNC-machined from solid material and finished with UV-resistant anodising
Black housing, black push buttons and white LED push-button lighting
Maximum push-button switching current: 1A; all push buttons switch to ground
Additional mo.unit switching electronics required

Special features of the Motogadget mo.switch basic 2-button switch assembly

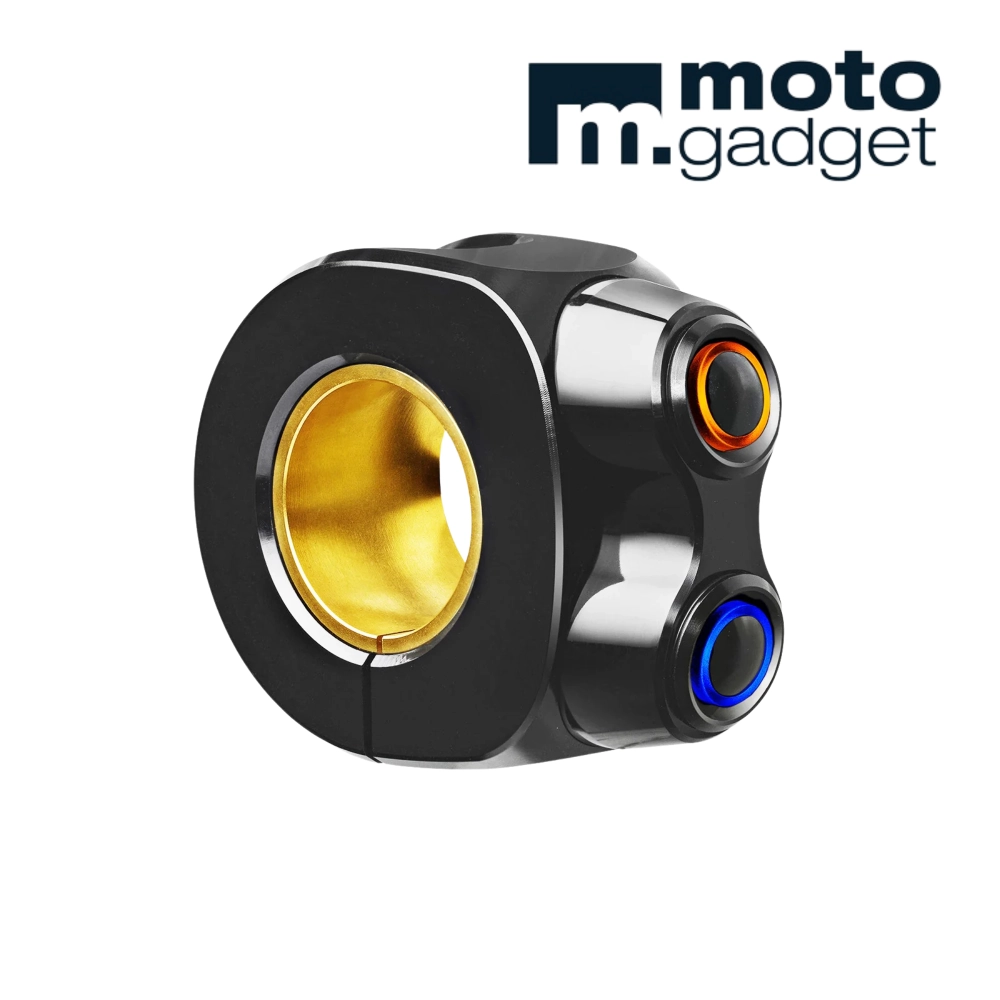

The individual push buttons are high-quality, extremely robust and protected against vibrations and water splashes (IP65). As standard, they are equipped with white LED push buttons. Each push button can be customised with 5 different LED colours.

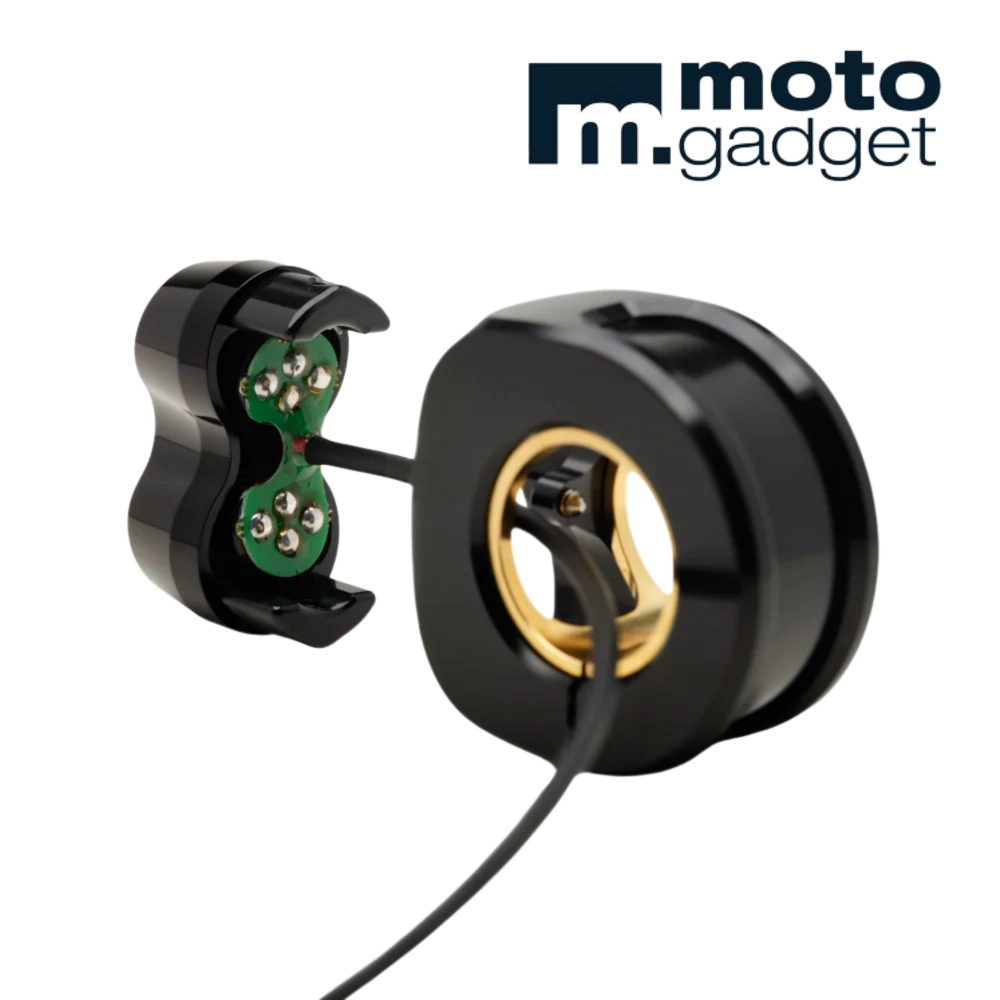

Thanks to their generous size and ergonomic pressure point with slight mechanical actuation, they provide a secure switching feel when operated, even while wearing gloves. With two connections per push button, single-wire or two-wire wiring can be carried out easily. A ground connection is already provided internally for single-wire wiring. This makes it easy to route the cables through the handlebars.

In the event of damage, the push buttons are available separately and can be replaced.
